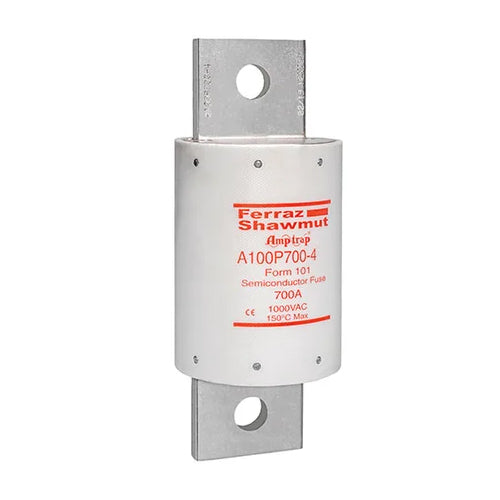

Mersen A100P700-4, Round Body High-Speed Fuse, 1000VAC, 700A, Bolted
Regular price
$1,373.18
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
A100P Amp-Trap® Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.
| Rated Voltage | 1000VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 700A |
| ROHS Compliant | Yes |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 2.88'' |
| Product Length | 7.44'' |
| Body/Insulating Material | GMG |
| Product Weight | 4.43 lb |
