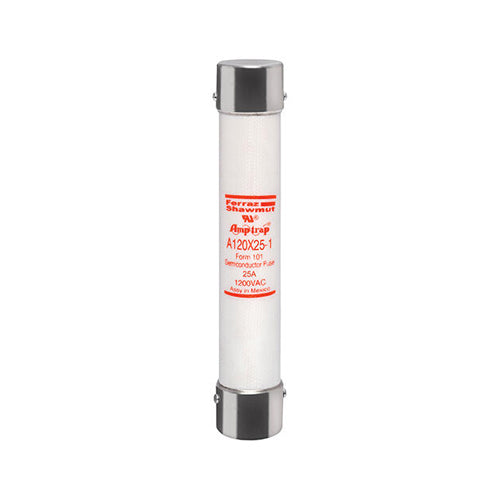

Mersen A120X25-1, Round Body High-Speed Fuse, 1200VAC/1000VDC, 25A, Ferrule
Regular price
$182.41
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
A120X Amp-Trap® Form 101 high speed fuses, rated 1/2A through 30A, 1200VAC are popular for use in traction drive auxiliary circuits and similar applications. A120X fuses are also suitable for use on 1000VDC auxiliary circuits with low time constants.
| Rated Voltage | 1200VAC/1000VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 25A |
| ROHS Compliant | Yes |
| Speed/Characteristic | High Speed |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.81'' |
| Product Length | 4.63'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.2 lb |
