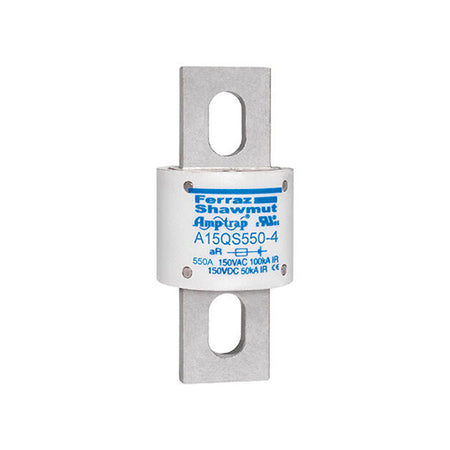

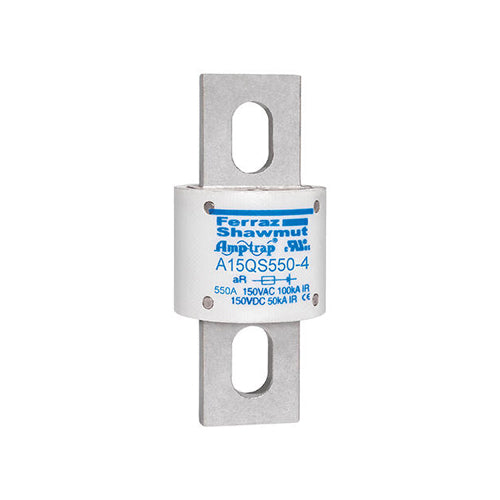

Mersen A15QS550-4, Semiconductor Protection Fuse, High-Speed, Fast Acting, 150VAC/DC, 550A, Blade

In stock
SKU: A15QS550-4
$305.57
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

A15QS Amp-Trap® Form 101 high speed fuses were designed for the specific protection of diodes and other semiconductor devices rated 150VAC/DC. The A15QS product line’s compact design is perfect for those applications that have limitations on available space.

Rated Voltage 150VAC/DC
Frequency (Hz) 50/60 Hz
Ampere Rating 550A
ROHS Compliant Yes
Speed/Characteristic High Speed
Mounting Bolted
AC Max I.R./Breaking Capacity: I1 200 kA
Connection/Terminal Material Tin-Plated Brass
Connection/Terminal Type Blade
Product Diameter 1.5''
Product Length 1.88''
Body/Insulating Material GMG
Product Weight 0.48 lb
