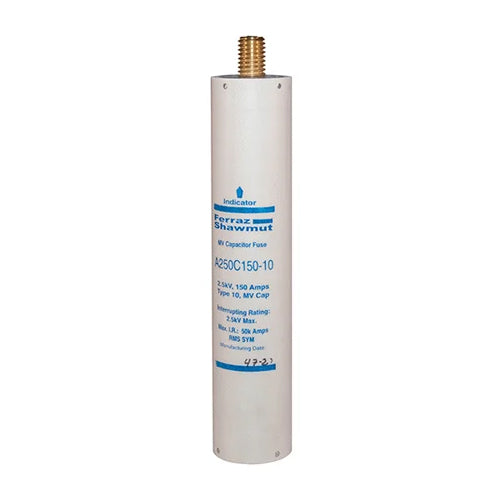

Mersen A250C150-10, Medium Voltage Capacitor Fuse, 2500VAC, 150A, Type 10, Inner Thread To Screw
Regular price
$709.94
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Medium Voltage Capacitor Fuse 2500VAC 150A Male To Female Stud Visual Indicator Type 10 Amp-Trap®
Mersen capacitor fuses are designed to ANSI C37-41. They are currentlimiting operating without noise or discharge and are designed to be used indoors in a general purpose enclosure or outdoors in a weatherproof enclosure. These are non-disconnecting fuses requiring the use of a disconnect switch. These capacitor fuses provide both short circuit and overload protection and are intended to protect against capacitor case rupture or dielectric failure within the capacitor.
| Rated Voltage | 2500VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 150A |
| ROHS Compliant | Yes |
| Mounting | Direct Mount |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Connection/Terminal Material | Tin-Plated Brass |
| Connection/Terminal Type | Male To Female Stud |
| Product Diameter | 1.42'' |
| Product Length | 7.67'' |
| Body/Insulating Material | GMG |
| Product Weight | 1.15 lb |
