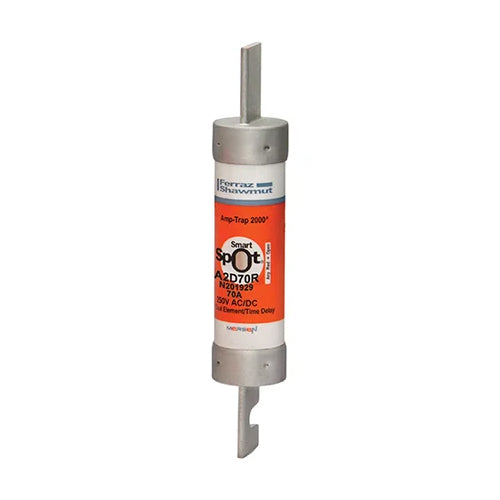

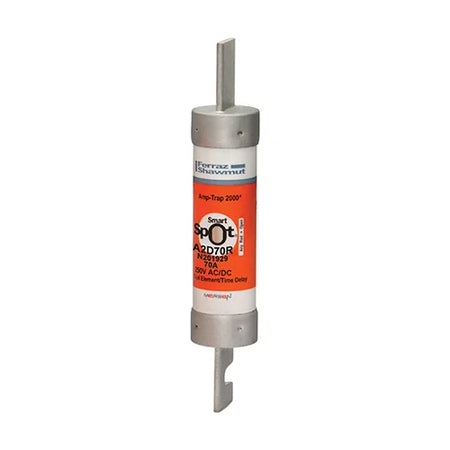

Mersen A2D70R, Class RK1 Time Delay Fuse, 250VAC/DC, 70A, Blade Type
Regular price
$73.85
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 70A Blade SmartSpot® Amp-Trap 2000®
Amp-Trap 2000 time-delay A2D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A2D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A2D-R fuses can be used to replace older 250V Class H, K or RK5 fuses already installed in the field.
| Rated Voltage | 250VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 70A |
| ROHS Compliant | Yes |
| Fuse Class | Class RK1 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | SmartSpot® |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 1.06'' |
| Product Length | 5.88'' |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.295 lb |
