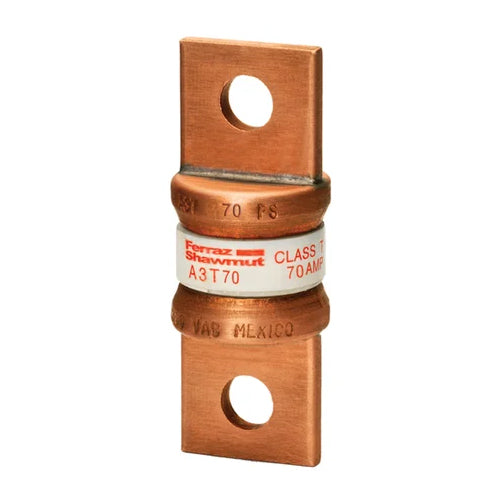

Mersen A3T70, Low Voltage UL/CSA Fuses, Class T, 300VAC/160VDC, 70A, Fast-Acting, Blade Type
Regular price
$71.23
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
| Rated Voltage | 300VAC/160VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 70A |
| ROHS Compliant | Yes |
| Fuse Class | Class T |
| Speed/Characteristic | Fast-Acting |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 0.81'' |
| Product Length | 2.16'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.075 lb |
