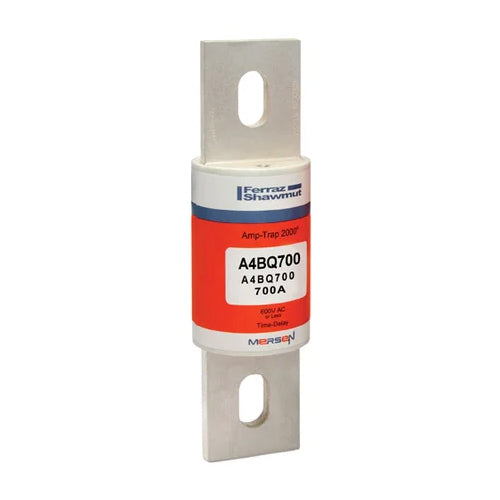

Mersen A4BQ700, Class L Time-Delay Fuse, 600VAC/500VDC, 700A, Blade Type
Regular price
$1,069.90
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.
| Rated Voltage | 600VAC/500VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 700A |
| ROHS Compliant | Yes |
| Fuse Class | Class L |
| Speed/Characteristic | Time Delay |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 2'' |
| Product Length | 8.63'' |
| Body/Insulating Material | GMG |
| Product Weight | 3.77 lb |
