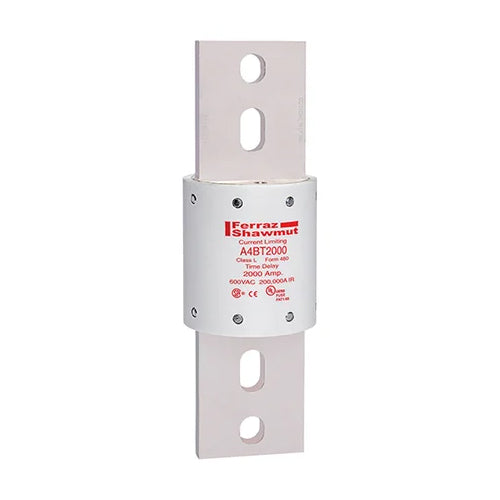

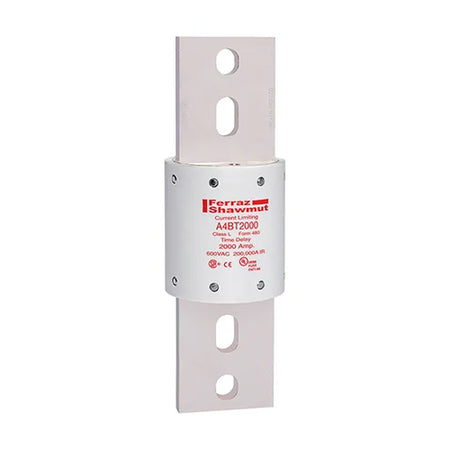

Mersen A4BT2000, Class L A4BT Time-Delay Fuse, 600VAC/500VDC, 2000A, Blade Type
Regular price
$717.61
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment.
| Rated Voltage | 600VAC/500VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 2000A |
| ROHS Compliant | Yes |
| Fuse Class | Class L |
| Speed/Characteristic | Time Delay |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 3.5'' |
| Product Length | 10.75'' |
| Body/Insulating Material | GMG |
| Product Weight | 8.13 lb |
