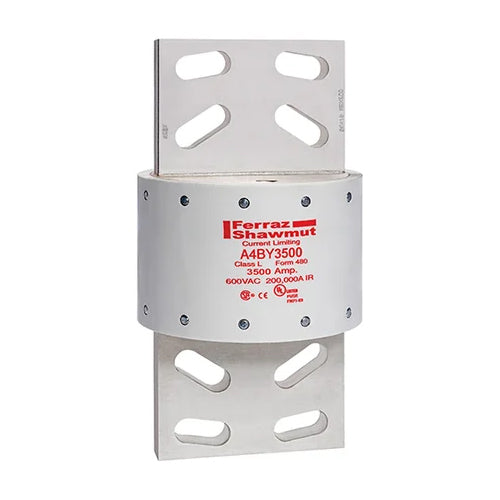

Mersen A4BY3500, Class L A4BY Time-Delay Fuse, 600VAC/300VDC, 3500A, Blade Type
Regular price
$1,953.31
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
| Rated Voltage | 600VAC/300VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 3500A |
| ROHS Compliant | Yes |
| Fuse Class | Class L |
| Speed/Characteristic | Time Delay |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 5.75'' |
| Product Length | 10.75'' |
| Body/Insulating Material | GMG |
| Product Weight | 25.2 lb |
