Home » Mersen A4J110, Class J A4J Fast-Acting Fuse, 600VAC/300VDC, 110A, Blade Type
Mersen

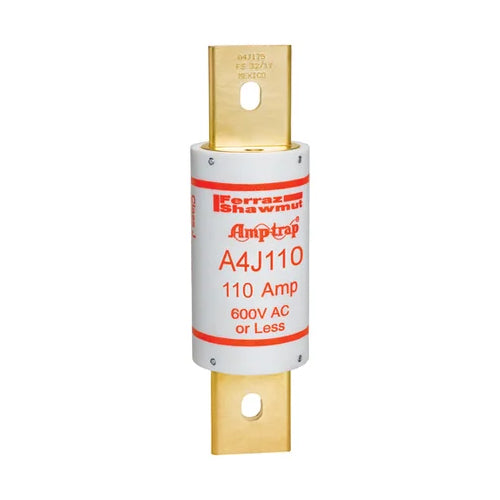

Mersen A4J110, Class J A4J Fast-Acting Fuse, 600VAC/300VDC, 110A, Blade Type

In stock
SKU: A4J110
$56.65
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.

 Rated Voltage 600VAC/300VDC
Frequency (Hz) 50/60 Hz
Ampere Rating 110A
ROHS Compliant Yes
Fuse Class Class J
Speed/Characteristic Fast-Acting
Mounting Clip
AC Max I.R./Breaking Capacity: I1 200 kA
Connection/Terminal Material Brass Alloy
Connection/Terminal Type Blade
Product Diameter 1.62''
Product Length 5.75''
Body/Insulating Material GMG
Product Weight 0.754 lb
