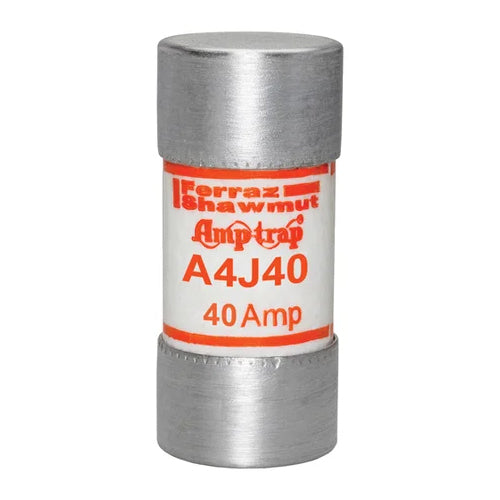

Mersen A4J40, Class J A4J Fast-Acting Fuse, 600VAC/300VDC, 40A, Ferrule Type
Regular price
$18.38
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
| Rated Voltage | 600VAC/300VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 40A |
| ROHS Compliant | Yes |
| Fuse Class | Class J |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 1.06'' |
| Product Length | 2.38'' |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.17 lb |
