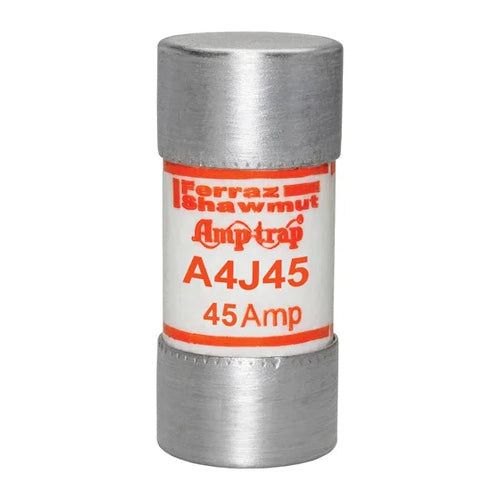

Mersen A4J45, Class J A4J Fast-Acting Fuse, 600VAC/300VDC, 45A, Ferrule Type

In stock
SKU: A4J45
$18.38
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.

 Rated Voltage 600VAC/300VDC
Frequency (Hz) 50/60 Hz
Ampere Rating 45A
ROHS Compliant Yes
Fuse Class Class J
Speed/Characteristic Fast-Acting
Mounting Clip
AC Max I.R./Breaking Capacity: I1 200 kA
Connection/Terminal Material Tin-Plated Copper
Connection/Terminal Type Ferrule
Product Diameter 1.06''
Product Length 2.38''
Body/Insulating Material PolyTube
Product Weight 0.17 lb
