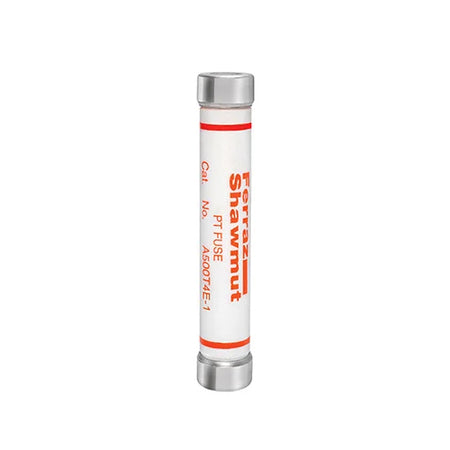

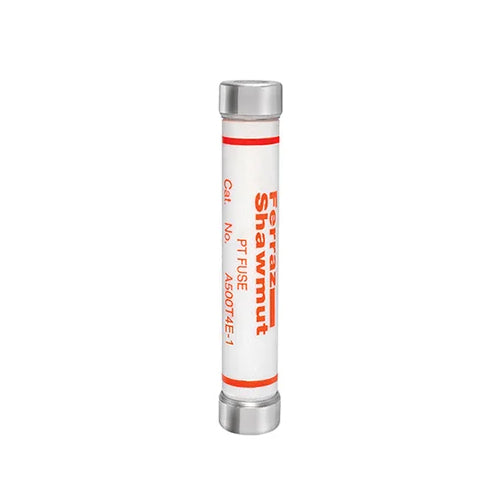

Home » Mersen A500T4E-1, Medium Voltage Potential Transformer Fuse, 5000VAC, 4A, Ferrule Type, 5" (127 mm) Clip Centers
Mersen

Mersen A500T4E-1, Medium Voltage Potential Transformer Fuse, 5000VAC, 4A, Ferrule Type, 5" (127 mm) Clip Centers

In stock
SKU: A500T4E-1
$384.73
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips.

 Rated Voltage 5000VAC
Frequency (Hz) 50/60 Hz
Ampere Rating 4A
Mounting Clip
AC Max I.R./Breaking Capacity: I1 50 kA
Connection/Terminal Material Tin-Plated Brass
Connection/Terminal Type Ferrule
Product Diameter 1''
Product Length 5.63''
Body/Insulating Material GMG
Product Weight 0.5 lb
