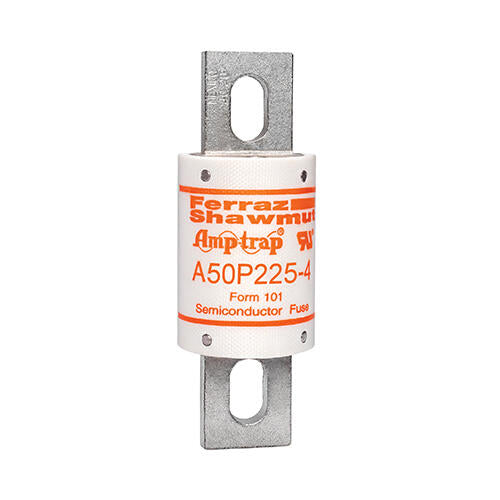

Mersen A50P225-4, Semiconductor Protection Fuse, High-Speed, Fast Acting, 500VAC/450VDC, 225A, Blade Type

In stock
SKU: A50P225-4
$302.47
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

A50P Amp-Trap® Form 101 high speed fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P is typically used for replacement.

Rated Voltage 500VAC/450VDC
Frequency (Hz) 50/60 Hz
Ampere Rating 225A
Speed/Characteristic High Speed
Mounting Bolted
AC Max I.R./Breaking Capacity: I1 52 kA
Connection/Terminal Material Tin-Plated Brass
Connection/Terminal Type Blade
Product Diameter 1.5''
Product Length 4.34''
Body/Insulating Material GMG
Product Weight 0.68 lb
