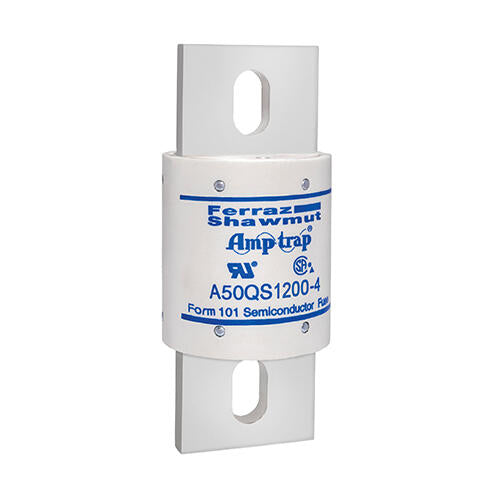

Mersen A50QS1200-4, Semiconductor Protection Fuse, High-Speed, 500VAC/DC, 1200A, Blade Type
Regular price
$1,404.01
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features – lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today’s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.
| Rated Voltage | 500VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 1200A |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 2.88'' |
| Product Length | 6.97'' |
| Body/Insulating Material | GMG |
| Product Weight | 4.8 lb |
