Mersen A60X250-4TI, Semiconductor Protection Fuse, High-Speed, Fast Acting, 600VAC, 250A, Blade Type, TI Indicator
Regular price
$488.85
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

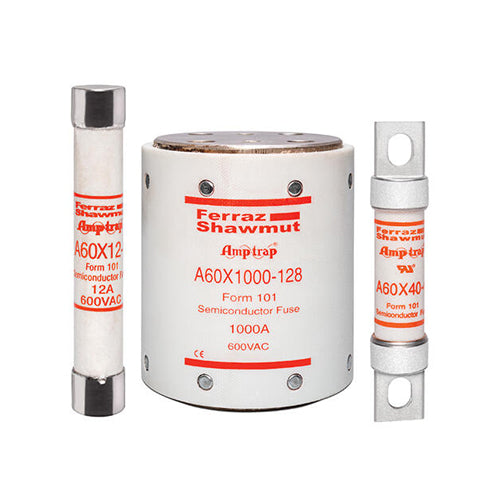

A60X Amp-Trap® Form 101 high speed fuses are popular for the protection of higher voltage heavy rectifiers such as traction rectifiers. They can carry long sustained overloads common with heavy duty apparatus. 700A through 2000A sizes are of compact, hockey-puck design, able to provide high power protection in a small space.
| Rated Voltage | 600VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 250 A |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | TI Indicator |
| Connection/Terminal Material | Tin-Plated Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 1.5'' |
| Product Length | 5.13'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.75 lb |
