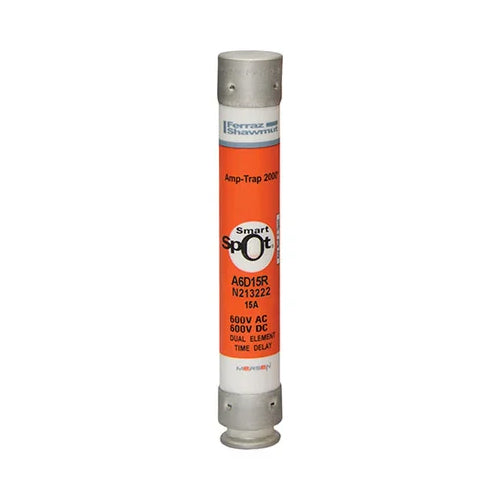

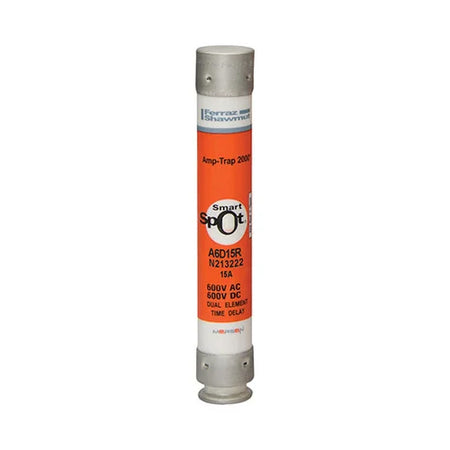

Mersen A6D15R, Class RK1 Time Delay Fuse, 600VAC/DC, 15A, Ferrule Type
Regular price
$48.61
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Amp-Trap 2000® time-delay A6D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A6D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A6D-R fuses can be used to replace older 600V Class H, K or RK5 fuses already installed in the field.
| Rated Voltage | 600VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 15A |
| Fuse Class | Class RK1 |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | SmartSpot® |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.81'' |
| Product Length | 5'' |
| Body/Insulating Material | PolyTube |
| Product Weight | 0.146 lb |
