Home » Mersen A6K70R, Low Voltage UL/CSA Fuse, Class RK1, Fast-Acting, 600VAC/300VDC, 70A, Blade Type
Mersen

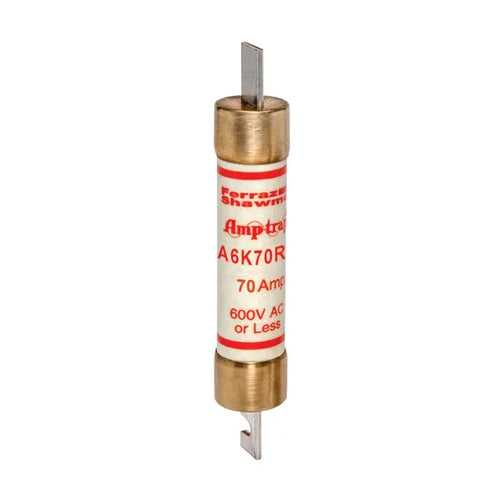

Mersen A6K70R, Low Voltage UL/CSA Fuse, Class RK1, Fast-Acting, 600VAC/300VDC, 70A, Blade Type

In stock
SKU: A6K70R
$134.72
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Current-limiting Amp-Trap A6K-R fuses provide excellent protection where high available short-circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.

 Rated Voltage 600VAC/300VDC
Frequency (Hz) 50/60 Hz
Ampere Rating 70A
Fuse Class Class RK1
Speed/Characteristic Fast-Acting
Mounting Clip
AC Max I.R./Breaking Capacity: I1 200 kA
Connection/Terminal Material Tin-Plated Copper
Connection/Terminal Type Blade
Product Diameter 1.31''
Product Length 7.88''
Body/Insulating Material PolyTube
Product Weight 0.699 lb
