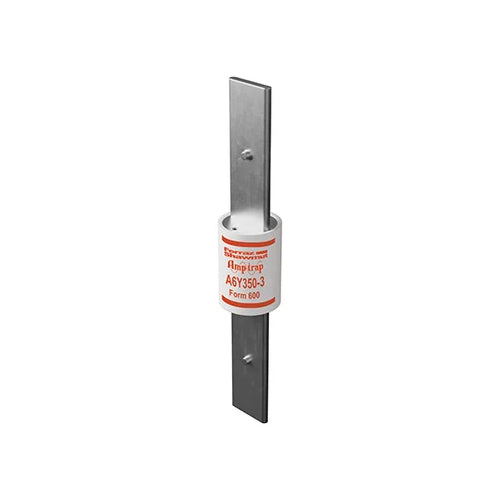

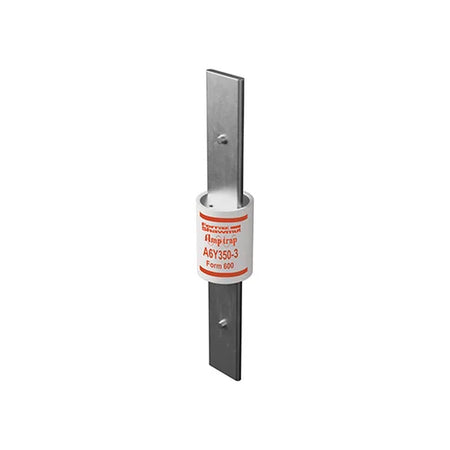

Mersen A6Y350-3, DC Special Fuse, 600VAC/500VDC, 350A, Type 3, Blade Type
Regular price
$1,740.29
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
| Rated voltage | 600VAC/500VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 350A |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 2'' |
| Product Length | 11.63'' |
| Body/Insulating Material | GMG |
| L/R (ms) | 10 ms |
| Product Weight | 2.3 lb |
