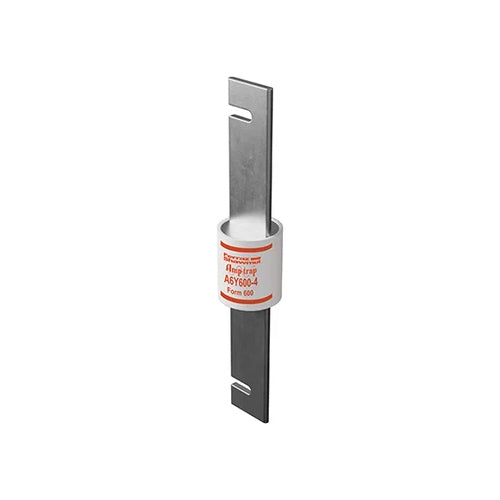

Mersen A6Y600-4, DC Special Fuse, 600VAC/500VDC, 600A, Type 4, Blade Type
Regular price
$2,297.61
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
| Rated voltage | 600VAC/500VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 600A |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 2.5'' |
| Product Length | 13.38'' |
| Body/Insulating Material | GMG |
| L/R (ms) | 10 ms |
| Product Weight | 4.15 lb |
