Home » Mersen A70P30-4, A70P Amp-Trap Form 101 High Speed Fuse, Fast Acting, 700VAC/650VDC, 30A, Blade Type
Mersen

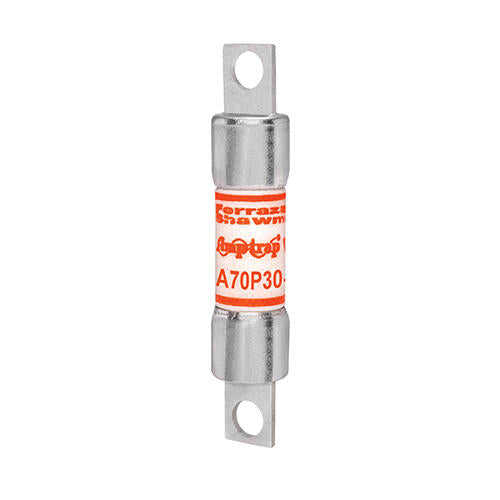

Mersen A70P30-4, A70P Amp-Trap Form 101 High Speed Fuse, Fast Acting, 700VAC/650VDC, 30A, Blade Type

In stock
SKU: A70P30-4
$86.41
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

A70P Amp-Trap® Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement.

Rated Voltage 700VAC/650VDC
Frequency (Hz) 50/60 Hz
Ampere Rating 30A
Speed/Characteristic High Speed
Mounting Bolted
AC Max I.R./Breaking Capacity: I1 50 kA
Connection/Terminal Material Tin-Plated Copper
Connection/Terminal Type Blade
Product Diameter 0.56''
Product Length 2.88''
Body/Insulating Material GMG
Product Weight 0.45 lb
