Home » Mersen A70Q100-4, A70Q Amp-Trap High Speed Fuse, Fast Acting, 700VAC/650VDC, 100A, Blade Type
Mersen

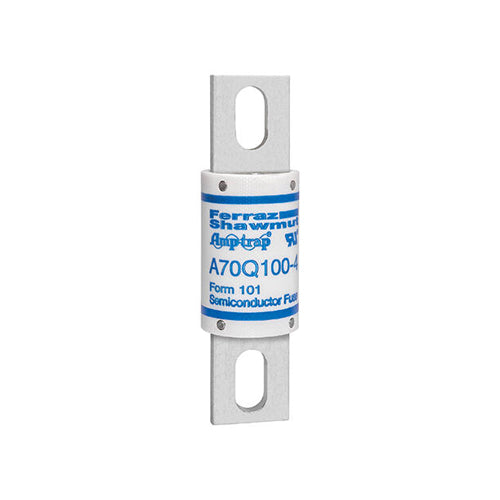

Mersen A70Q100-4, A70Q Amp-Trap High Speed Fuse, Fast Acting, 700VAC/650VDC, 100A, Blade Type

In stock
SKU: A70Q100-4
$234.28
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

A70Q Amp-Trap® high speed fuses were developed for inverter applications requiring extremely low I2t. A70Q fuses provide the most responsive protection for applications not required to sustain heavy overloads. Typically used for replacement purposes.

Rated Voltage 700VAC/650VDC
Frequency (Hz) 50/60 Hz
Ampere Rating 100A
Speed/Characteristic High Speed
Mounting Bolted
AC Max I.R./Breaking Capacity: I1 64 kA
Connection/Terminal Material Tin-Plated Brass
Connection/Terminal Type Blade
Product Diameter 1.22''
Product Length 4.37''
Body/Insulating Material GMG
Product Weight 0.51 lb
