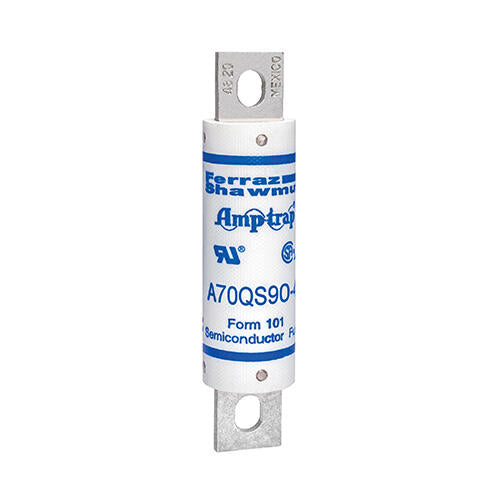

Mersen A70QS90-4, A70QS Amp-Trap High Speed Fuse, 700VAC/DC, 90A, Blade Type
Regular price
$252.76
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
A70QS Amp-Trap® high speed fuses were developed in response to the need for improved overall performance of 700V semiconductor fuses for new equipment requirements. A70QS fuses have lower I2t for better protection, longer life when subjected to cyclic loading, plus lower watts loss. A70QS is the best choice to protect dynamic solid state equipment such as motor drives, UPS, etc.
| Rated Voltage | 700VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 90A |
| Speed/Characteristic | High Speed |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 1'' |
| Product Length | 4.38'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.51 lb |
