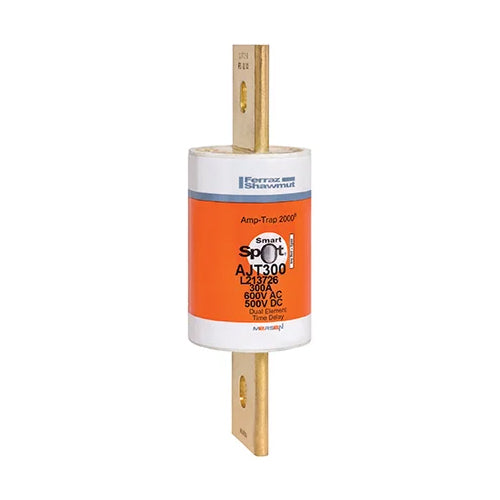

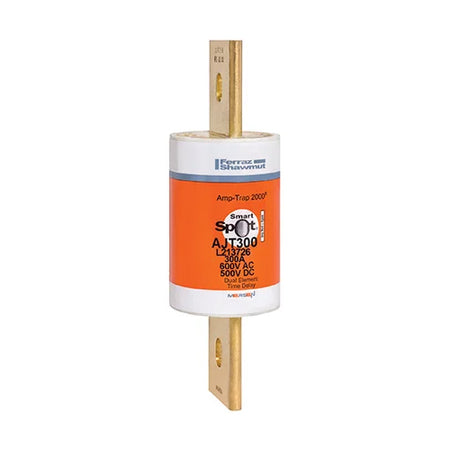

Mersen AJT300, Time-delay Class J Fuse with Solid State SmartSpot Visual Open Fuse Indicator, 600VAC/500VDC, 300A, Blade Type
Regular price
$222.28
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
| Rated Voltage | 600VAC/500VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 300A |
| ROHS Compliant | Yes |
| Fuse Class | Class J |
| Speed/Characteristic | Time Delay |
| Mounting | Clip or Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System | Yes |
| Indication System Type | SmartSpot® |
| Connection/Terminal Material | Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 2.12'' |
| Product Length | 7.13'' |
| Body/Insulating Material | GMG |
| Product Weight | 1.79 lb |
