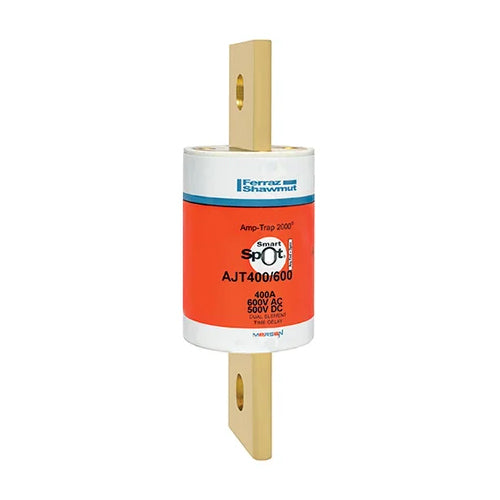

Mersen AJT400/600, Reducer Fuse AJT, Class J, Time Delay, 600VAC/500VDC, 400A, Blade Type
Regular price
$1,149.95
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
AJT Reducer Fuses are a safe permanent solution for decreasing your current rating without using a fuse reducer which are designed and list for temporary use only. These reducer fuses provide the same trusted protection levels as a traditional AJT fuses but in a larger body.
| Rated Voltage | 600VAC/500VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 400A |
| ROHS Compliant | Yes |
| Fuse Class | Class J |
| Speed/Characteristic | Time Delay |
| Mounting | Clip or Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 2.5'' |
| Product Length | 8'' |
| Body/Insulating Material | GMG |
| Product Weight | 3.25 lb |
