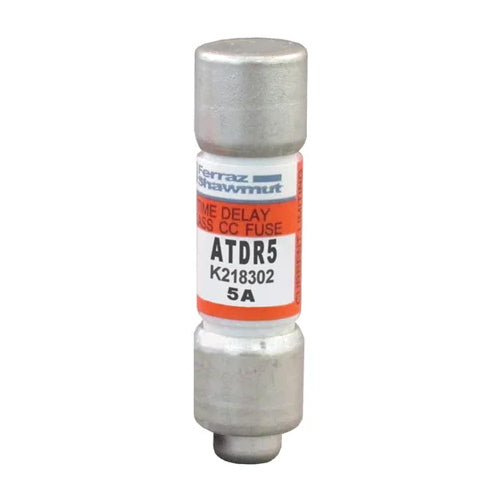

Mersen ATDR5, ATDR Class CC Time-Delay Fuse, 600VAC/300VDC, 5A, Ferrule Type
Regular price
$14.24
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
| Rated Voltage | 600VAC/300VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 5A |
| Fuse Class | Class CC |
| Speed/Characteristic | Time Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.41'' |
| Product Length | 1.5'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.017 lb |
