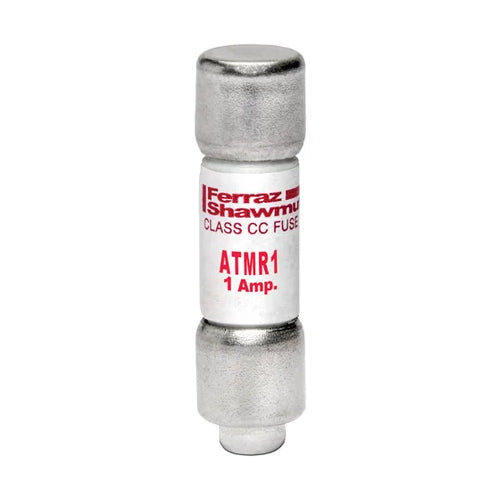

Mersen ATMR1, ATMR Class CC Fast-Acting Fuse, 600VAC/DC, 1A, Ferrule Type
Regular price
$13.80
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
| Rated Voltage | 600VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 1A |
| Fuse Class | Class CC |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.41'' |
| Product Length | 1.5'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.017 lb |
