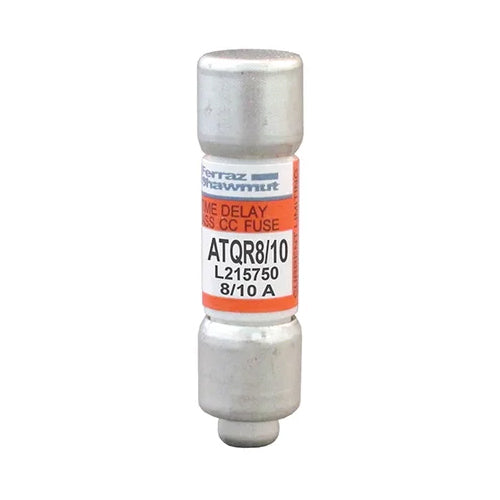

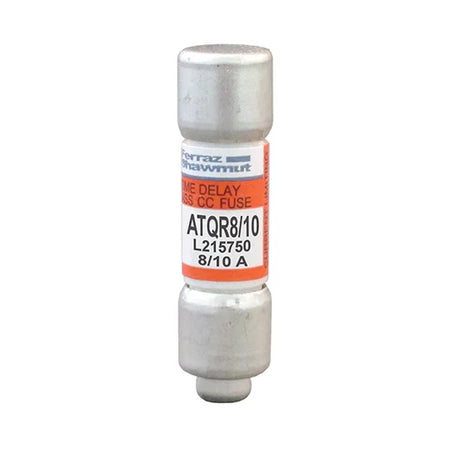

Mersen ATQR8/10, Class CC ATQR Time-Delay Fuse, 600VAC/300VDC, 0.8A, Ferrule Type
Regular price
$13.83
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
| Rated Voltage | 600VAC/300VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 0.8A |
| Fuse Class | Class CC |
| Speed/Characteristic | Time-Delay |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.41'' |
| Product Length | 1.5'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.017 lb |
