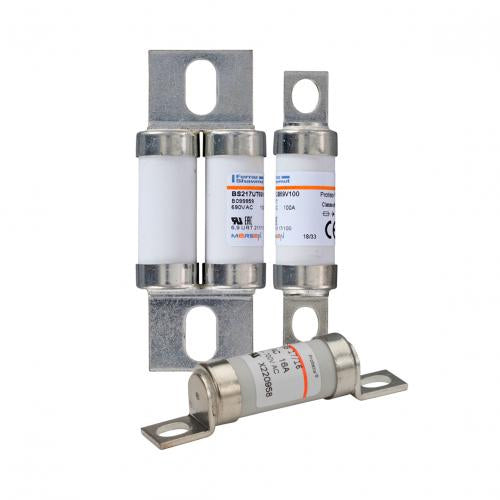

Mersen BS17GB69V25, Semiconductor Protection Fuse, British Standard, Size 17x49 gR, 690VAC, 25A
Regular price
$113.35
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Extremely high breaking capacity fuses: Protection of power semiconductors as per IEC standard 60269-1 and -4 690V voltage rating as per IEC 33 gR class (current ratings 12 to 90A) as per VDE 636-23 - Clearing all overloads - Improved safety and protection - Enabling selective coordination with all fuses within distribution circuit aR class (current ratings 100A) according to VDE 636-23 and IEC 60269-4 Connection as per: - German standard DIN 43653/00C - British standard BS88-4 These fuses are UL Recognized
| Item number | Z220960 |
| Rated Voltage | 690VAC |
| Ampere Rating | 25A |
| ROHS Compliant | Yes |
| Fuse Size | 17x49 |
| Mounting | Bolted |
| Clearing I2t At Rated Voltage | 170 A²s |
| Melting I2t | 26.8 A²s |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Design Details | gRB |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | L Brackets |
| Product Diameter | 0.73 in |
| Product Length | 3.04 in |
| Sell Pack Quantity | 10 EA |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.086 lb |
| Power Dissipation at Rated Current Value | 8 W |
