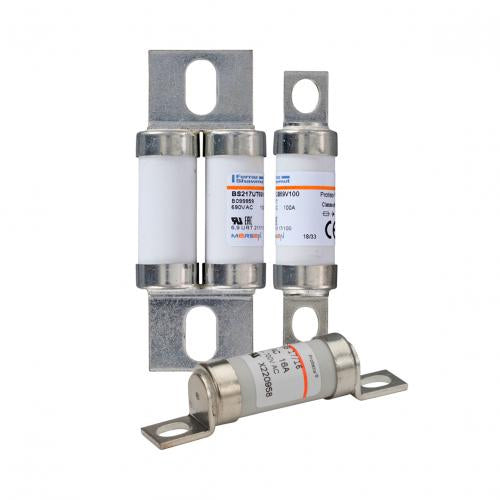

Mersen BS17GB69V40, Semiconductor Protection Fuse, British Standard, Size 17x49 gR, 690VAC, 40A
Regular price
$119.10
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Extremely high breaking capacity fuses: Protection of power semiconductors as per IEC standard 60269-1 and -4 690V voltage rating as per IEC 33 gR class (current ratings 12 to 90A) as per VDE 636-23 - Clearing all overloads - Improved safety and protection - Enabling selective coordination with all fuses within distribution circuit aR class (current ratings 100A) according to VDE 636-23 and IEC 60269-4 Connection as per: - German standard DIN 43653/00C - British standard BS88-4 These fuses are UL Recognized
| Item number | C220963 |
| Rated Voltage | 690VAC |
| Ampere Rating | 40A |
| ROHS Compliant | Yes |
| Fuse Size | 17x49 |
| Mounting | Bolted |
| Clearing I2t At Rated Voltage | 610 A²s |
| Melting I2t | 96 A²s |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Design Details | gRB |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | L Brackets |
| Product Diameter | 0.73 in |
| Product Length | 3.04 in |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.086 lb |
| Power Dissipation at Rated Current Value | 10.5 W |
