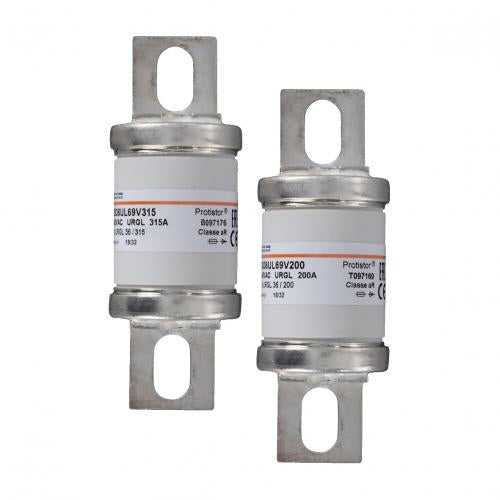

Mersen BS36UL69V315, Semiconductor Protection Fuse, British Standard, Size 36x55 aR, 690VAC, 315A

In stock
SKU: BS36UL69V315
$453.62
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Extremely high breaking capacity fuses: Protection of power semiconductors as per IEC standard 60269-1 and -4 690V voltage rating as per IEC 33 aR class (current ratings from 75 to 800A) as per VDE 636-23 and IEC 60269.4 Design without indicator

Item number B097176
Rated Voltage 690VAC
Ampere Rating 315A
ROHS Compliant Yes
Speed/Characteristic aR
Fuse Size 36x55
Mounting Bolted
Clearing I2t At Rated Voltage 180000 A²s
Melting I2t 38100 A²s
AC Max I.R./Breaking Capacity: I1 200 kA
Design Details gRB
Connection/Terminal Material Copper
Connection/Terminal Type L Brackets
Product Diameter 1.56 in
Product Length 3.23 in
Body/Insulating Material Ceramic
Product Weight 0.476 lb
Power Dissipation at Rated Current Value 42.6 W
