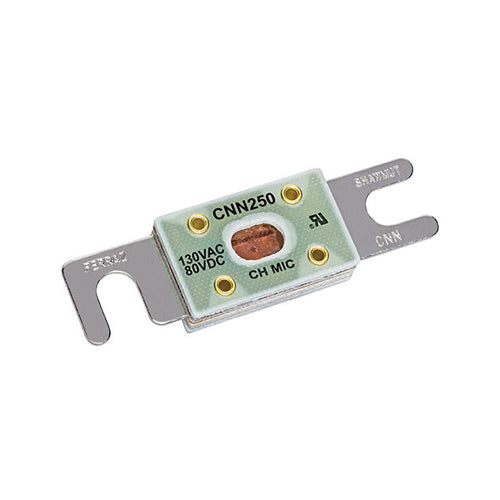

Mersen CNN250, Forklift Truck UL CNN Fuse, Fast-Acting, 130VAC/80VDC, 250A, Blade Type, Visual Indicator
Regular price
$88.89
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen forklift truck and battery isolator fuses are specially designed for the heavy duty loads associated with DC battery powered equipment such as forklift trucks, hand trucks, motorized work platforms, and other DC battery operated systems. Rugged construction and stud mounted bolt-in design assure a long life in adverse conditions for these fuses. This expanded line of forklift truck fuses can fulfill virtually all of your heavy duty circuit protection needs up to 125V AC or DC.
| Rated voltage | 130VAC/80VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 250A |
| Speed/Characteristic | Fast-Acting |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 2500 A |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Width | 0.64'' |
| Product Length | 3.19'' |
| Product Height | 0.4'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.06 lb |
