Home » Mersen CRN80, Class H CRN Fuse, Time Delay, 250VAC, 80A, Blade Type
Mersen

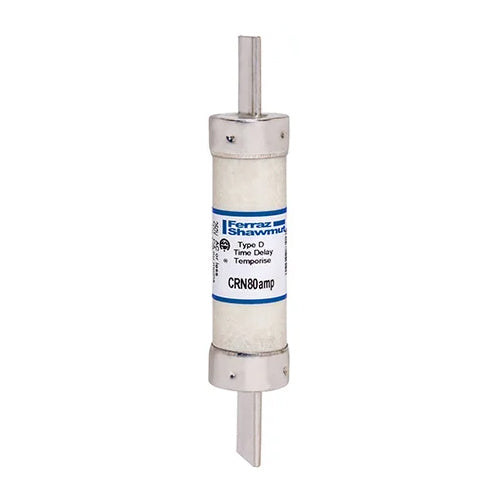

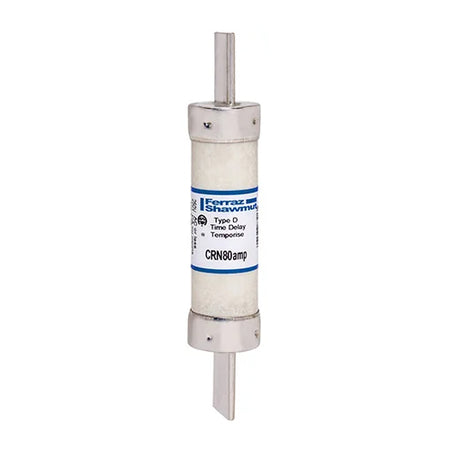

Mersen CRN80, Class H CRN Fuse, Time Delay, 250VAC, 80A, Blade Type

In stock
SKU: CRN80
$18.98
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Mersen CRN and CRS fuses are standard fuses, Type D, with 10kA short circuit rating. Type D fuses satisfy the Canadian Electrical Code requirement for low melting-point fuses

 Rated Voltage 250VAC
Frequency (Hz) 50/60 Hz
Ampere Rating 80A
Fuse Class Class H
Speed/Characteristic Time Delay
Mounting Clip
AC Max I.R./Breaking Capacity: I1 10 kA
Connection/Terminal Material Tin-Plated Copper
Connection/Terminal Type Blade
Product Diameter 1.06''
Product Length 5.88''
Body/Insulating Material Paper
Product Weight 0.29 lb
