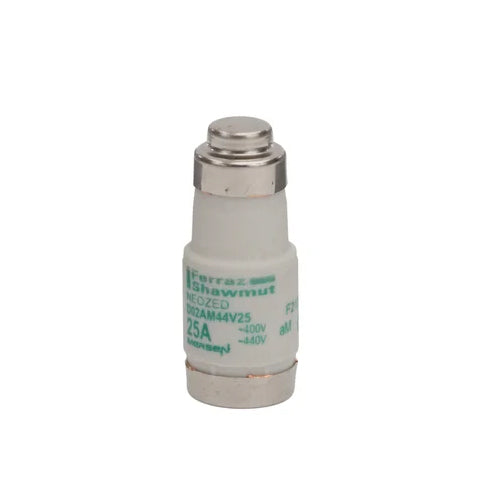

Mersen D02AM44V25, DIN D0 Fuse-link Neozed aM Size D02, 440VAC, 25A, Yellow
Regular price
$59.79
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The D0 fuse-system is installed in motor circuit protection, where fuse-links are accessible to non trained persons and can also be replaced by them. The system is the most modern of the screw systems and designed for 400VAC/440VAC networks.
| Item number | F212640 |
| Rated voltage | 440VAC |
| Ampere Rating | 25A |
| Identification Color Code | Jaune |
| Speed/Characteristic | aM |
| Fuse Size | D02 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System | Yes |
| Indication System Type | Colored indicator flag Visual Indicator |
| Product Diameter | 0.59 in |
| Product Length | 1.42 in |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.029 lb |
| Power Dissipation at Rated Current Value | 3 W |
