Home » Mersen D02GG44V63, DIN D0 Fuse-link Neozed gG Size D02, 440VAC/250VDC, 63A, Copper
Mersen

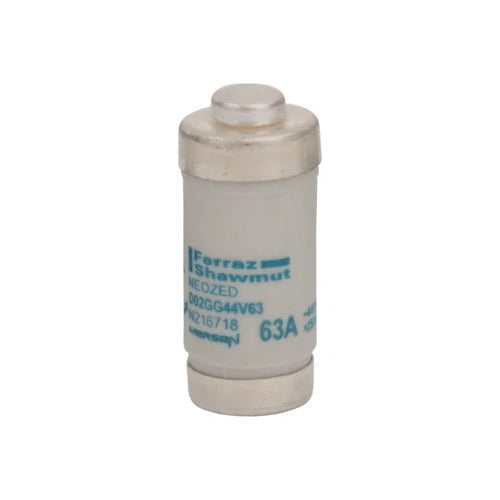

Mersen D02GG44V63, DIN D0 Fuse-link Neozed gG Size D02, 440VAC/250VDC, 63A, Copper

In stock
SKU: D02GG44V63
$60.60
Rated voltage
Ampere rating
Colour

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The D0 fuse-system is installed in motor circuit protection, where fuse-links are accessible to non trained persons and can also be replaced by them. The system is the most modern of the screw systems and designed for 400VAC/440VAC networks.

Item number N216718
 Rated voltage 440VAC/250VDC
Ampere Rating 63A
Identification Color Code Cuivre
Speed/Characteristic gG
Fuse Size D02
Mounting Clip
AC Max I.R./Breaking Capacity: I1 50 kA
Indication System Yes
Indication System Type Colored indicator flag Visual Indicator
Product Diameter 0.59 in
Product Length 1.42 in
Body/Insulating Material Ceramic
Product Weight 0.028 lb
Power Dissipation at Rated Current Value 5.1 W
