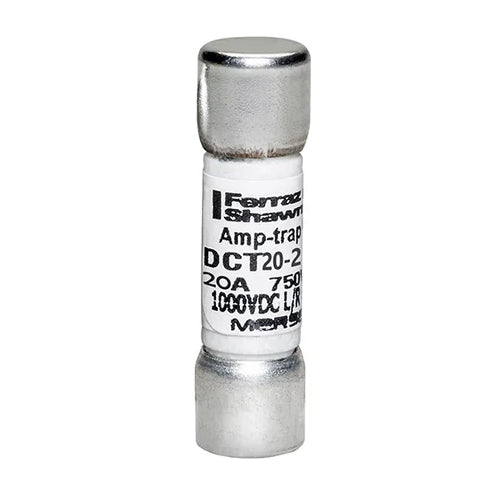

Mersen DCT20-2, Midget Fast-Acting DCT Fuse, 750VAC/1000VDC, 20A, Ferrule Type
Regular price
$106.61
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Amp-Trap DCT fuses were developed to meet requirements coming from new applications such as protection of photovoltaic cells, multi meters and compact on board traction equipment for auxiliary circuits. This high performance DC fuse in its compact size offers multiple competitive advantages particularly for international applications where DC voltage requirements are above 600VDC.
| Rated Voltage | 750VAC/1000VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 20A |
| Fuse Class | Midget |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.41'' |
| Product Length | 1.5'' |
| Body/Insulating Material | GMG |
| Product Weight | 0.016 lb |
