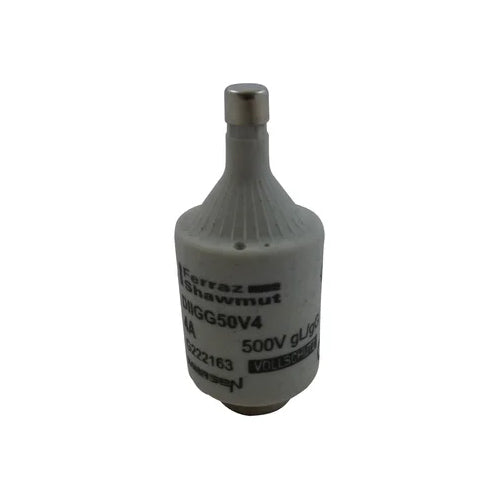

Mersen DIIGG50V4, DIN D Fuse-link gG, Size DII, 500VAC/DC, 4A, Brown
Regular price
$21.62
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The D fuse-system is the first generation of screw fuse-system in the german DIN standard. It is still used in many installations. Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links. The D fuse range comprises the sizes NDZ, DII, DIII, DIV, DV.
| Item number | G222163 |
| Rated voltage | 500VAC/DC |
| Ampere Rating | 4A |
| Identification Color Code | Marron |
| Speed/Characteristic | gG |
| Fuse Size | DII |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System | Yes |
| Indication System Type | Colored indicator flag Visual Indicator |
| Product Diameter | 0.87 in |
| Product Length | 1.97 in |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.059 lb |
| Power Dissipation at Rated Current Value | 2 W |
