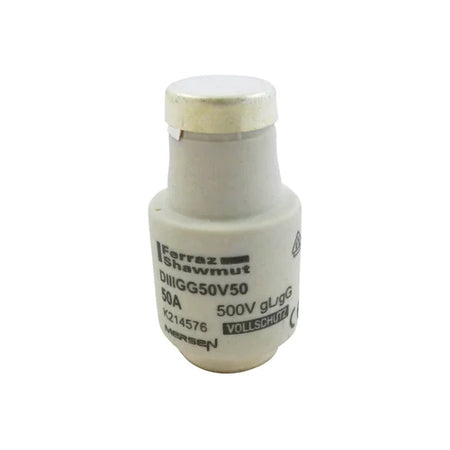

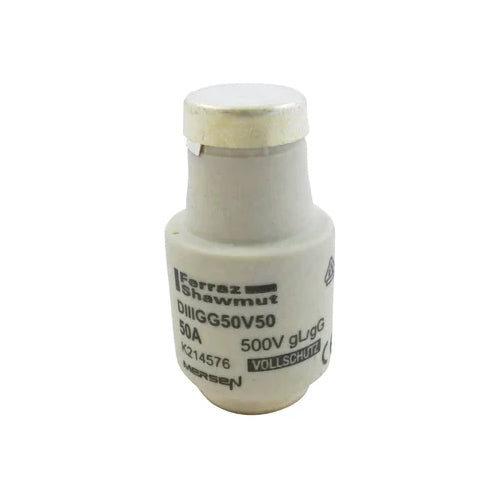

Mersen DIIIGG50V50, DIN D Fuse-link gG, Size DIII, 500VAC/DC, 50A, White
Regular price
$34.33
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The D fuse-system is the first generation of screw fuse-system in the german DIN standard. It is still used in many installations. Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links. The D fuse range comprises the sizes NDZ, DII, DIII, DIV, DV.
| Item number | K214576 |
| Rated voltage | 500VAC/DC |
| Ampere Rating | 50A |
| Identification Color Code | Blanc |
| Speed/Characteristic | gG |
| Fuse Size | DIII |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System | Yes |
| Indication System Type | Colored indicator flag Visual Indicator |
| Product Diameter | 1.06 in |
| Product Length | 1.97 in |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.114 lb |
| Power Dissipation at Rated Current Value | 5.2 W |
