Mersen FESF350, Class C Fuse, Fast-acting, 600VAC/460VDC, 350A, Blade FESF
Regular price
$166.56
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

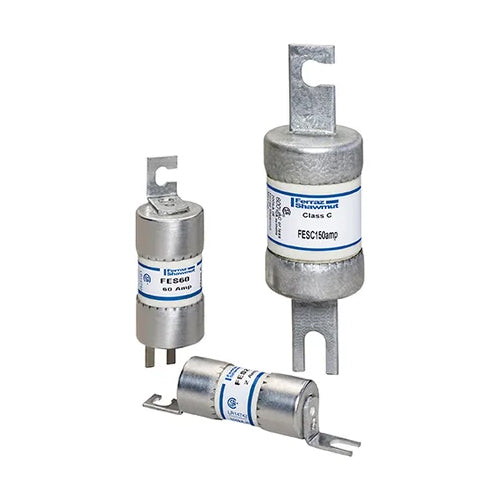

Ferraz Shawmut Class C fuses have British standard (BS88) dimensions and are exact replacements for the British fuses and older HRCII-C fuses. Class C fuses are not dimensionally or electrically interchangeable with other North American fuses. They feature ceramic bodies and bolt-in mounting. They are for short-circuit protection only, in motor controllers, for example, where overload protection is provided by an overload relay.
| Rated Voltage | 600VAC/460VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 350A |
| Fuse Class | Class C |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Silver-Plated Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 2'' |
| Product Length | 5.38'' |
| Body/Insulating Material | PolyTube |
| Product Weight | 1.3 lb |
