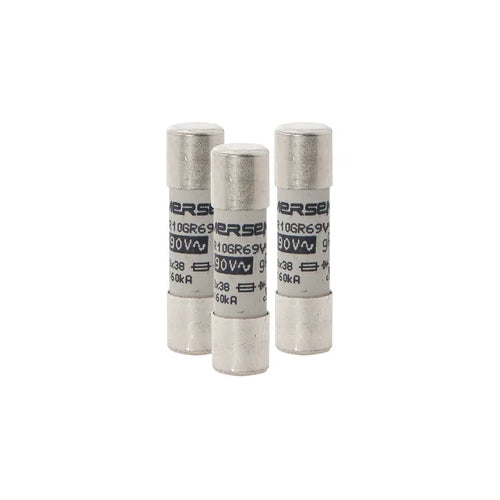

Mersen FR10GR69V12.5, High-Speed Cylindrical Fuse, Fast Acting, Size 10x38 gR, 690VAC, 12.5A
Regular price
$58.50
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The 10x38 gR cylindrical is a fast acting, full range fuse used in the protection of inverters, UPS, variable speed drives and other discrete semiconductor devices.
| Item number | C1014578 |
| Rated voltage | 690VAC |
| Ampere Rating | 12.5A |
| Speed/Characteristic | gR |
| Fuse Size | 10x38 |
| Mounting | Clip |
| Clearing I2t At Rated Voltage | 90 A²s |
| Melting I2t | 11 A²s |
| AC Max I.R./Breaking Capacity: I1 | 160 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.41 in |
| Product Length | 1.54 in |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.018 lb |
| Power Dissipation at Rated Current Value | 2.8 W |
