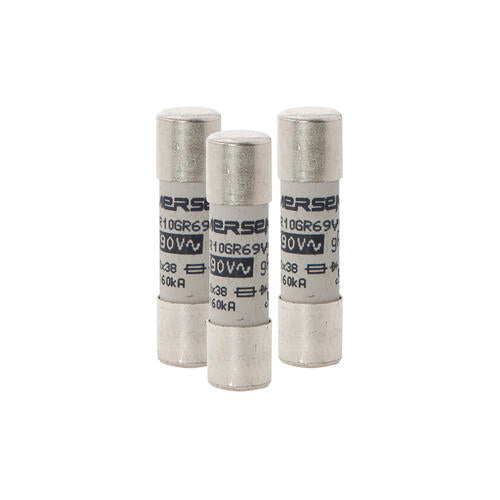

Mersen FR10GR69V5, High-Speed Cylindrical Fuse, Fast Acting, Size 10x38 gR, 690VAC, 5A
Regular price
$58.50
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The 10x38 gR cylindrical is a fast acting, full range fuse used in the protection of inverters, UPS, variable speed drives and other discrete semiconductor devices.
| Item number | X1014573 |
| Rated voltage | 690VAC |
| Ampere Rating | 5A |
| Speed/Characteristic | gR |
| Fuse Size | 10x38 |
| Mounting | Clip |
| Clearing I2t At Rated Voltage | 30 A²s |
| Melting I2t | 7 A²s |
| AC Max I.R./Breaking Capacity: I1 | 160 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.41 in |
| Product Length | 1.54 in |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.018 lb |
| Power Dissipation at Rated Current Value | 0.9 W |
