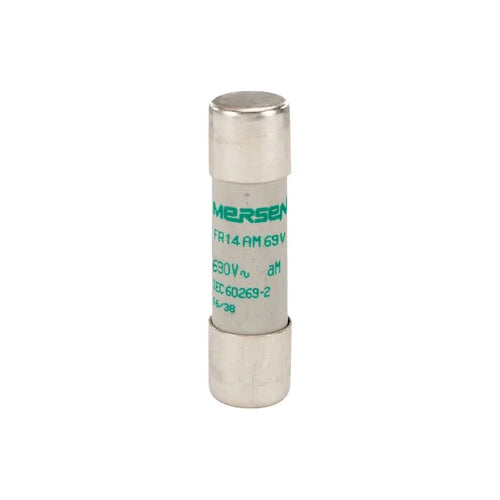

Mersen FR14AM69V8, aM Cylindrical Fuse-Links, Size 14x51mm, 690VAC, 8A
Regular price
$42.59
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Cylindrical fuse-links “aM” are partial range fuses. They protect electrical devices in case of unacceptable high short-circuit against destruction due high current limiting and low thermal let-through values. They cut off currents more than 6.3xln until the maximum breaking capacity (rated breaking capacity). Cylindrical fuse-links “aM” are mainly used for the protection of installation switch gear in otor circuit currents. For classification of the cylindrical fuse-links the nominal current of the fuse-link can be selected respective to the nominal current of the motor.
| Item number | T215642 |
| Rated voltage | 690VAC |
| Ampere Rating | 8A |
| Speed/Characteristic | aM |
| Fuse Size | 14x51 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 120 kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.56 in |
| Product Length | 2.01 in |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.046 lb |
| Power Dissipation at Rated Current Value | 0.55 W |
