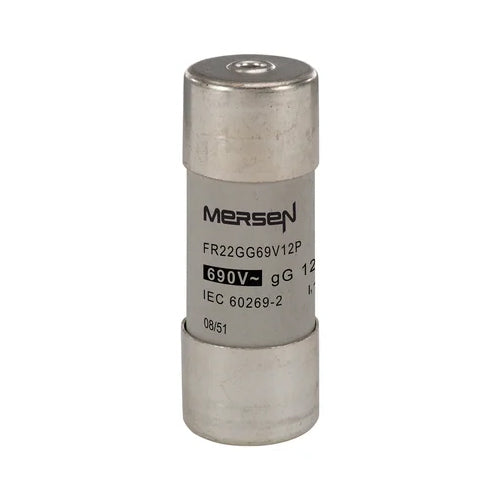

Mersen FR22GG69V12P, gG Cylindrical Fuse-Links, Size 22x58mm, 690VAC/250VDC, 12A, With Striker
Regular price
$113.69
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Cylindrical fuse-links "gG" are used for the protection of cables, motors and LV-networks. They limit and cut off unacceptable overcurrents and short-circuit currents up to their nominal breaking capacity. Cylindrical fuse-links "gG" also protect electrical equipment and installations against the dynamic effect of high short-currents. Our technology and process was designed to ensure highly reliable technical performance.
| Item number | W218726 |
| Rated voltage | 690VAC/250VDC |
| Ampere Rating | 12A |
| Speed/Characteristic | gG |
| Fuse Size | 22x58 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 120 kA |
| Max. Rated Breaking Capacity DC | 100 kA @ 250 V, L/R = 15 ms |
| Indication System | Yes |
| Indication System Type | Striker |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.87 in |
| Product Length | 2.28 in |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.119 lb |
| Power Dissipation at Rated Current Value | 2 W |
