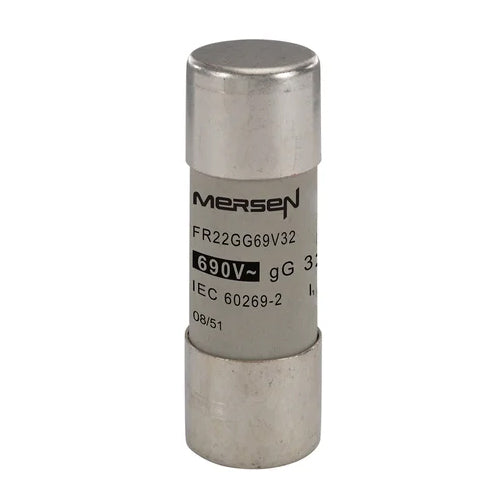

Mersen FR22GG69V32, gG Cylindrical Fuse-Links, Size 22x58mm, 690VAC/250VDC, 32A
Regular price
$68.96
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Cylindrical fuse-links "gG" are used for the protection of cables, motors and LV-networks. They limit and cut off unacceptable overcurrents and short-circuit currents up to their nominal breaking capacity. Cylindrical fuse-links "gG" also protect electrical equipment and installations against the dynamic effect of high short-currents. Our technology and process was designed to ensure highly reliable technical performance.
| Item number | F212594 |
| Rated voltage | 690VAC/250VDC |
| Ampere Rating | 32A |
| Speed/Characteristic | gG |
| Fuse Size | 22x58 |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 120 kA |
| Max. Rated Breaking Capacity DC | 100 kA @ 250 V, L/R = 15 ms |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.87 in |
| Product Length | 2.28 in |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.119 lb |
| Power Dissipation at Rated Current Value | 3.7 W |
