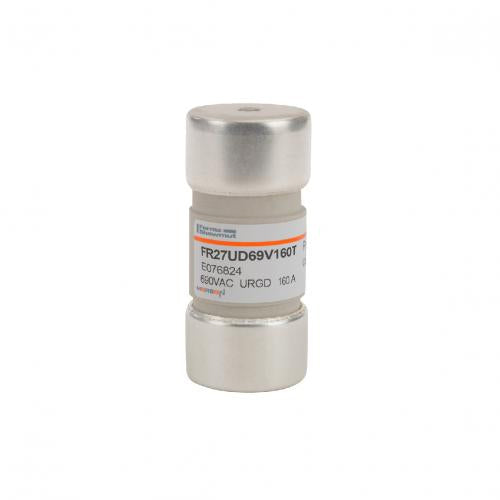

Mersen FR27UD69V160T, High-Speed Cylindrical Fuse, Size 27x60 aR(URGD), 690VAC, 160A, With Striker
Regular price
$245.13
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Extremely high breaking capacity fuses: Protection of power semiconductors Complying with standard IEC 60269-1 and -4 600-690VAC voltage rating aR class according to IEC 60269-4 and VDE 636-23
| Item number | E076824 |
| Rated Voltage | 690VAC |
| Ampere Rating | 160A |
| Speed/Characteristic | aR |
| Fuse Size | 27x60 |
| Mounting | Clip |
| Clearing I2t At Rated Voltage | 24.6 kA²s |
| Melting I2t | 6.48 kA²s |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Design Details | URGD |
| Indication System | Yes |
| Indication System Type | Striker |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 1.06'' |
| Product Length | 2.37'' |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.176 lb |
| Power Dissipation at Rated Current Value | 32.5 W |
