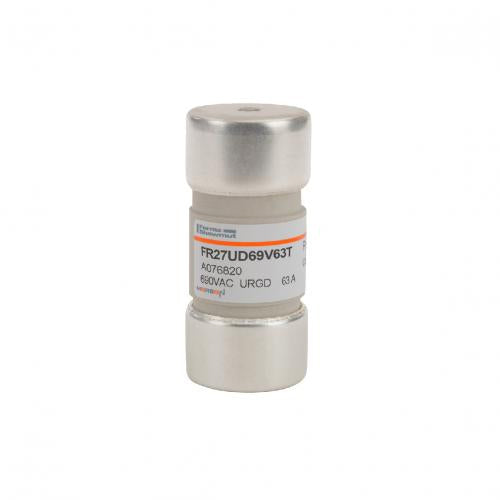

Mersen FR27UD69V63T, High-Speed Cylindrical Fuse, Size 27x60 aR(URGD), 690VAC, 63A, With Striker
Regular price
$302.64
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Extremely high breaking capacity fuses: Protection of power semiconductors Complying with standard IEC 60269-1 and -4 600-690VAC voltage rating aR class according to IEC 60269-4 and VDE 636-23
| Item number | A076820 |
| Rated Voltage | 690VAC |
| Ampere Rating | 63A |
| Speed/Characteristic | aR |
| Fuse Size | 27x60 |
| Mounting | Clip |
| Clearing I2t At Rated Voltage | 1.84 kA²s |
| Melting I2t | 0.405 kA²s |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Design Details | URGD |
| Indication System | Yes |
| Indication System Type | Striker |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 1.06'' |
| Product Length | 2.37'' |
| Body/Insulating Material | Ceramic |
| Product Weight | 0.176 lb |
| Power Dissipation at Rated Current Value | 22 W |
