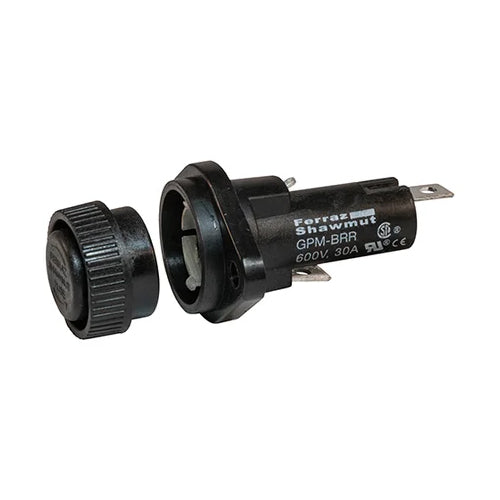

Mersen GPM-BRR, GPM Series 30A Panel Mount Fuse Holder Class CC, 600VAC/DC, 1-Pole, 1/4” Quick-connect/Solder Terminal, 1/4 Turn Bayonet Knob
Regular price
$60.29
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.
| Rated voltage (UL) | 600VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Fuse Type/Class | Class CC |
| Design Details | 1/4 Turn Bayonet Knob |
| Number of Poles | 1-Pole |
| Fuse Installation Method | Clip-in |
| Installation Mounting | Panel Mount |
| Dimensions | 2.42'' (L) x 1.13'' (W) x 1.13'' (H) |
| Body/Insulating Material | Thermoplastic |
| Product Weight | 0.065 lb |
