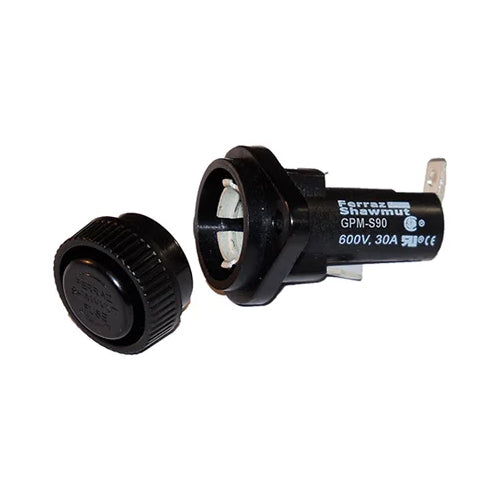

Mersen GPM-S90, GPM Series 30A Panel Mount Fuse Holder Midget, 600VAC/DC, 1-Pole, 1/4” Quick-connect/Solder, Right Angle Terminal, 90 angle Screw Knob
Regular price
$29.87
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.
| Rated voltage (UL) | 600VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Fuse Type/Class | Midget |
| Design Details | 90 angle screw Knob |
| Number of Poles | 1-Pole |
| Fuse Installation Method | Clip-in |
| Installation Mounting | Panel Mount |
| Dimensions | 2.11'' (L) x 1.13'' (W) x 1.13'' (H) |
| Body/Insulating Material | Thermoplastic |
| Product Weight | 0.065 lb |
