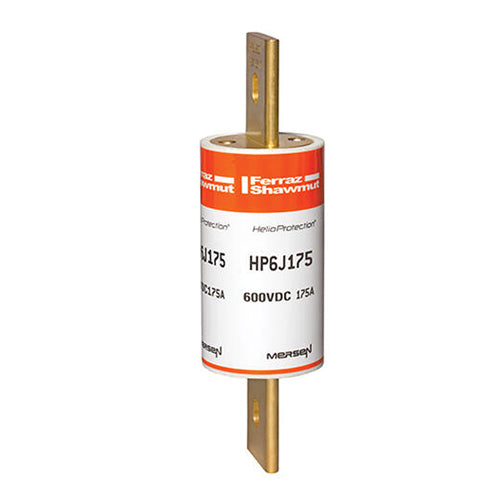

Mersen HP6J175, 600VDC Class J Photovoltaic Fuse, 175A, With Blade For Clip or Bolted
Regular price
$367.20
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen’s HP6J photovoltaic (PV) fuse series was engineered specifically for DC Recombiner Boxes in the protection of 600VDC photovoltaic systems. Its enhanced construction makes it ideal for continuous temperature and current cycling withstand adding to system longevity. The 600VDC rated HP6J designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value allows for safe circuit interruption under typical low fault current conditions produced by PV arrays. Protect your off-grid or grid tied PV system from unexpected ground faults and line faults using Mersen’s HelioProtection® fuse line.
| Rated voltage | 600VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 175A |
| Fuse Class | Photovoltaic |
| Speed/Characteristic | gPV |
| Mounting | Clip or Bolted |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Brass |
| Connection/Terminal Type | Blade |
| Product Diameter | 1.63 in |
| Product Length | 5.75 in |
| Body/Insulating Material | GMG |
| Product Weight | 0.8 lb |
