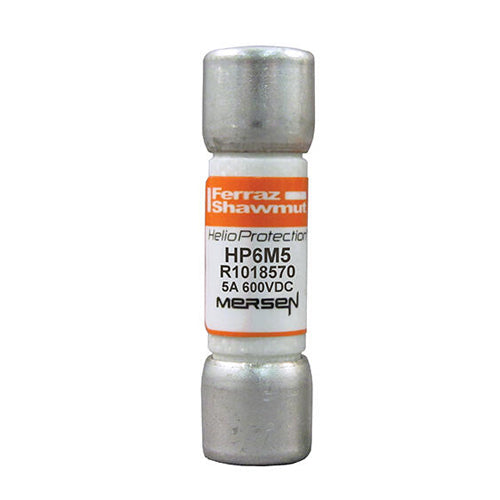

Mersen HP6M5, 600VDC Midget (10x38mm) Photovoltaic Fuse, 5A, With Ferrule For Clip
Regular price
$36.40
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen HP6M photovoltaic (PV) fuse series was engineered and designed specifically for the protection of photovoltaic systems. Its enhanced fuse construction makes it ideal for constant temperature and current cycling withstand adding to system longevity. The 600VDC rated HP6M, designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, allows for safe circuit interruption under typical low fault current conditions produced by PV arrays. Protect your off-grid or grid tied PV system from unexpected ground faults and line faults using Mersen's HelioProtection fuse line
| Rated voltage | 600VDC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 5A |
| Fuse Class | Photovoltaic |
| Speed/Characteristic | gPV |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 1.5 in |
| Product Length | 0.41 in |
| Body/Insulating Material | GMG |
| Product Weight | 0.02 lb |
